Custom Yellow Epoxy Fiberglass Sheet 1240×1040×1mm
Home / Product / Epoxy Fiberglass Sheet / Yellow Epoxy Fiberglass Sheet 1240×1040×1mm
  • Yellow Epoxy Fiberglass Sheet 1240×1040×1mm
  • Yellow Epoxy Fiberglass Sheet 1240×1040×1mm
  • Yellow Epoxy Fiberglass Sheet 1240×1040×1mm
  • Yellow Epoxy Fiberglass Sheet 1240×1040×1mm
  • Yellow Epoxy Fiberglass Sheet 1240×1040×1mm
  • Yellow Epoxy Fiberglass Sheet 1240×1040×1mm

Yellow Epoxy Fiberglass Sheet 1240×1040×1mm

Size: 1240×1040×1mm Yellow

Application: Circuit boards & insulation components

Features: Excellent insulation, heat resistance, flame retardant UL94 V0. Widely used for electrical insulation, lithium battery insulation plates, PCB jigs.

Epoxy fiberglass sheet is a high-performance thermosetting insulating composite material. It features compact texture, high flatness and stable dimension. With excellent electrical insulation, temperature resistance and aging resistance, it owns great mechanical toughness and machinability. It is widely used for insulating structural parts in precision electronics, new energy and automation equipment.

Contact Us
PREV：No previous productNEXT：No next product
Parameter

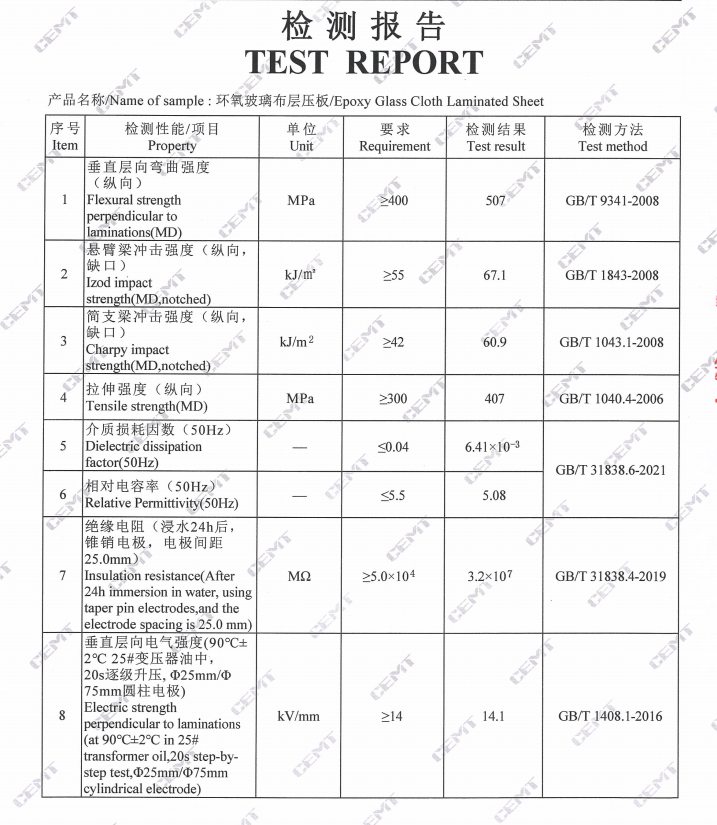

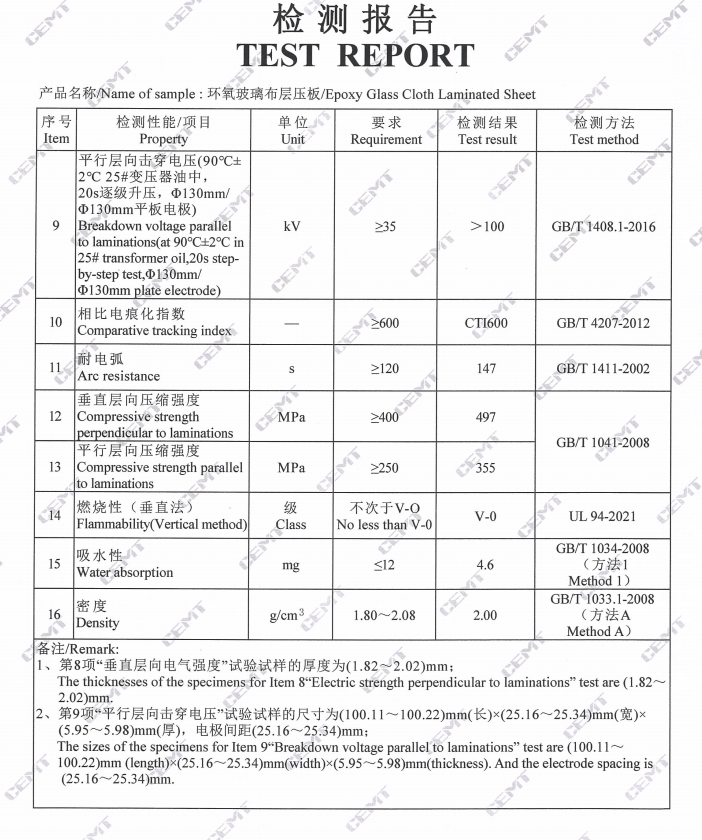

Test Certificate/Report for Epoxy Fiberglass Sheet
1c56feb0-f264-4316-8ea7-48b0c51a4b73 cba30e95-8668-4e8b-9a1b-42335dc4fca1
MATERIAL CODE: FR-4-YL-1040
Yellow Epoxy Fiberglass Sheet
1240 × 1040 × 1.0 mm
UL 94 V-0
Class B 130°C
Dielectric 20-28 kV/mm
Physical properties
Thickness1.0 mm ±0.10
Dimensions1240 × 1040 mm
ColorYellow (pigmented)
Density1.85-1.95 g/cm³
Electrical properties
Dielectric strength20-28 kV/mm
Volume resistivity10⁷-10⁸ MΩ·cm
Dissipation factor0.015-0.02 @1MHz
CTI175-200 V (PLC 3)
Thermal properties
Operating temp130°C (Class B)
Short-term peak150°C (30 min)
Thermal conductivity0.25-0.35 W/(m·K)
FlammabilityUL 94 V-0
Yellow epoxy sheet
Yellow epoxy fiberglass sheet manufactured from woven E-glass fabric impregnated with brominated epoxy resin. The sheet provides reliable electrical insulation with dielectric strength of 20-28 kV/mm and water absorption below 0.15 percent after 24 hours immersion. The yellow pigmentation enables visual identification for electrical insulation applications. The material is self-extinguishing per UL 94 V-0 and maintains structural integrity at continuous operating temperatures up to 130°C.
Detail view
Surface texture detail
Material composition
E-glass fabric reinforcement in brominated epoxy resin matrix. Yellow pigment incorporated during resin formulation. Compatible with standard PCB fabrication processes and CNC machining.
Applications
Switchgear insulation barriers
Busbar support brackets
Transformer winding spacers
PCB test fixtures
Motor slot wedges
Insulating mounting plates
FAQ
▶ Machining recommendations
Carbide tools recommended. Feed 0.05-0.10 mm/rev, spindle 20,000-40,000 RPM. Support sheet fully during machining.
▶ Thermal cycling limits
-40°C to 130°C. Warpage below 0.3% after 100 cycles. Degradation above 150°C.
▶ Chemical compatibility
Resistant to acetone, ethanol, oils. Avoid concentrated sulfuric acid and strong alkalines.
ⓘ All sheets inspected per IPC-4101. Dielectric strength tested per ASTM D149. Certificate of conformance available.
