Custom 1k/3k/12k Carbon Fiber Plain Weave Fabric
Home / Product / Carbon Fiber Woven Cloth / Pure Carbon Woven Fabric / 1k/3k/12k Carbon Fiber Plain Weave Fabric
  • 1k/3k/12k Carbon Fiber Plain Weave Fabric
  • 1k/3k/12k Carbon Fiber Plain Weave Fabric
  • 1k/3k/12k Carbon Fiber Plain Weave Fabric
  • 1k/3k/12k Carbon Fiber Plain Weave Fabric

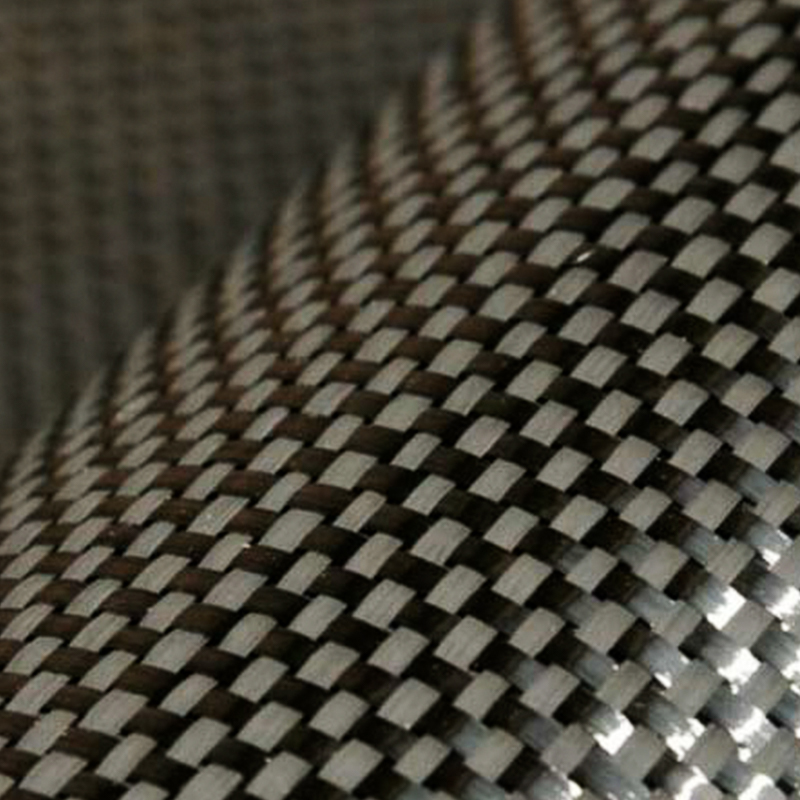

1k/3k/12k Carbon Fiber Plain Weave Fabric

1K, 3K, 12K carbon fiber plain weave fabrics are high-performance textile materials made from carbon fiber. Plain weave fabrics are woven in alternating warp and weft, which are flat and wear-resistant. 1K fabric is light and thin, suitable for high-precision small structures; 3K fabric has moderate strength and is widely used in aerospace, automotive and other fields; 12K fabric is thicker and suitable for large areas and high strength requirements, such as wind turbine blades and building reinforcement. Carbon fiber fabrics are lightweight, corrosion-resistant and high-strength.

Contact Us
PREV：Abrasion-Resistant And High-Temperature-Resistant Carbon Fiber Twill Weave FabricNEXT：Highly Flexible Carbon Fiber Unidirectional UD Reinforcement Fabric
Parameter

Product Characteristics

  • High specific strength, high specific elasticity
  • Fatigue resistance, thermal stability
  • Conductivity, good X-ray permeability
  • Thermal acidification resistance, corrosion resistance, chemical resistance.

Type

  Reinforcement  Weave Weight（g/㎡） Thickness（mm）  Width（M）
DL-1K Plain 1K Plain 120 0.16 0-2.3
DL-3K Plain 3K Plain 160 0.18 0-2.3
DL-3K Plain 3K Plain 200 0.22 0-2.3
DL-3K Plain 3K Plain 280 0.3 0-2.3
DL-12K Plain 12K Plain 400 0.45 0-2.3
DL-12K Plain 12K Plain 450 0.5 0-2.3

We can design and produce fabrics according to customers' requirements (the above is only a part of the display)

1K · 3K · 12K · PLAIN WEAVE
Carbon Fiber Plain Weave Fabric
Plain weave carbon fiber fabric manufactured from Toray, Mitsubishi, or Zoltek carbon fiber tows in 1K, 3K, and 12K filament counts. The weave structure features a symmetric one-over-one-under interlacing pattern, providing balanced mechanical properties in the 0-degree and 90-degree directions. Areal weight ranges from 80 gsm (1K) to 600 gsm (12K). Standard widths available from 100 mm to 1,600 mm. The fabric exhibits tensile strength of 3,500-4,800 MPa and tensile modulus of 230-240 GPa, with thickness per ply ranging from 0.08 mm to 0.42 mm depending on tow size and areal weight.
Tow size
1K 3K 12K
Areal weight
80 gsm 200 gsm 300 gsm 600 gsm
Width range
100 mm 300 mm 1,000 mm 1,600 mm
Cured ply thickness: 0.08-0.42 mm (tow dependent)
Core advantages
A
Balanced properties: Symmetrical weave geometry provides equal tensile and flexural strength in warp and fill directions, eliminating orientation-specific weaknesses.
B
Drape characteristics: The plain weave structure offers consistent drapability over compound curves with minimal spring-back, maintaining conformability to mold surfaces.
C
Surface aesthetics: The interlacing pattern produces a visible checkerboard texture that is retained after lamination, providing visual uniformity for cosmetic applications.
D
Weave stability: The tight interlacing prevents yarn slippage during handling and resin infusion, maintaining fiber alignment and preventing distortion.
Specifications by tow size
TowAreal weightThicknessTensile strength
1K80-100 gsm0.08-0.10 mm4,800 MPa
3K200-245 gsm0.20-0.25 mm4,200 MPa
12K400-600 gsm0.35-0.42 mm3,500 MPa
Resin compatibility: Epoxy, polyester, vinyl ester, phenolic. Sizing agent matched to resin system.
Application fields
Aerospace interiors Automotive body panels Sports equipment Marine hulls Architectural facades Medical imaging tables Wind turbine blades Drone frames Industrial rollers Custom cosmetic overlays
Handling and processing notes
Cutting: Use pneumatic scissors or CNC knife cutters. Laser cutting may cause edge melting on thermoplastic sizing. Waterjet suitable for high-volume production.
Resin infusion: Permeability varies with tow size. 1K and 3K fabrics require lower injection pressure (0.2-0.4 MPa). 12K fabrics allow faster flow rates (0.5-0.8 MPa).
Draping: Pre-heating to 40-50°C improves conformability for complex 3D shapes. Avoid stretching beyond 2 percent elongation to prevent weave distortion.
Consolidation: Vacuum bag pressure 0.08-0.1 MPa. Autoclave curing at 120-180°C depending on resin system. Post-cure cycle per resin manufacturer specifications.
Common questions
Selecting between 1K, 3K, and 12K
1K provides finest surface texture and conformability for complex shapes. 3K offers balance of cost and cosmetic appearance. 12K is cost-optimized for structural applications where surface finish is less critical.
Shelf life and storage conditions
12 months at 5-25°C with relative humidity below 60 percent. Store in original packaging. Sizing degradation may occur if exposed to temperature above 35°C for extended periods.
Repair of damaged plain weave fabric
Localized damage can be repaired by patching with matching tow size fabric. Overlap patch by 25 mm minimum on each side. Cure with same resin system at reduced temperature.
i All fabric lots tested for areal weight per ASTM D3776 and tensile properties per ASTM D3039 (resin-impregnated). Certification available for aerospace, automotive, and marine applications.
