Custom Carbon Fiber Suitcase with Spinner Wheels
Home / Product / Special-shaped Parts / ODM / Carbon Fiber Suitcase with Spinner Wheels
  • Carbon Fiber Suitcase with Spinner Wheels
  • Carbon Fiber Suitcase with Spinner Wheels
  • Carbon Fiber Suitcase with Spinner Wheels
  • Carbon Fiber Suitcase with Spinner Wheels
  • Carbon Fiber Suitcase with Spinner Wheels
  • Carbon Fiber Suitcase with Spinner Wheels

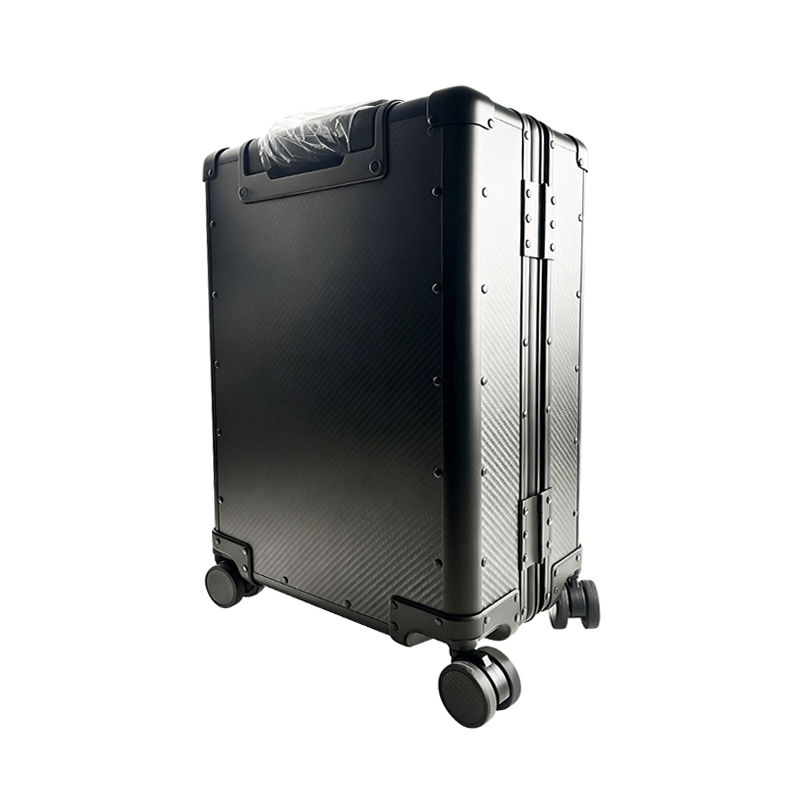

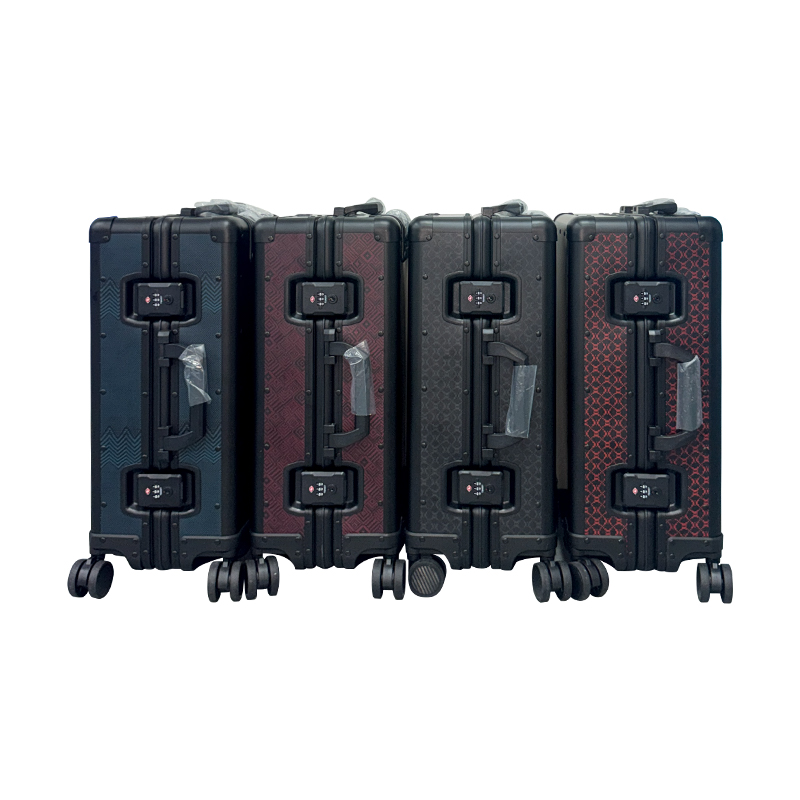

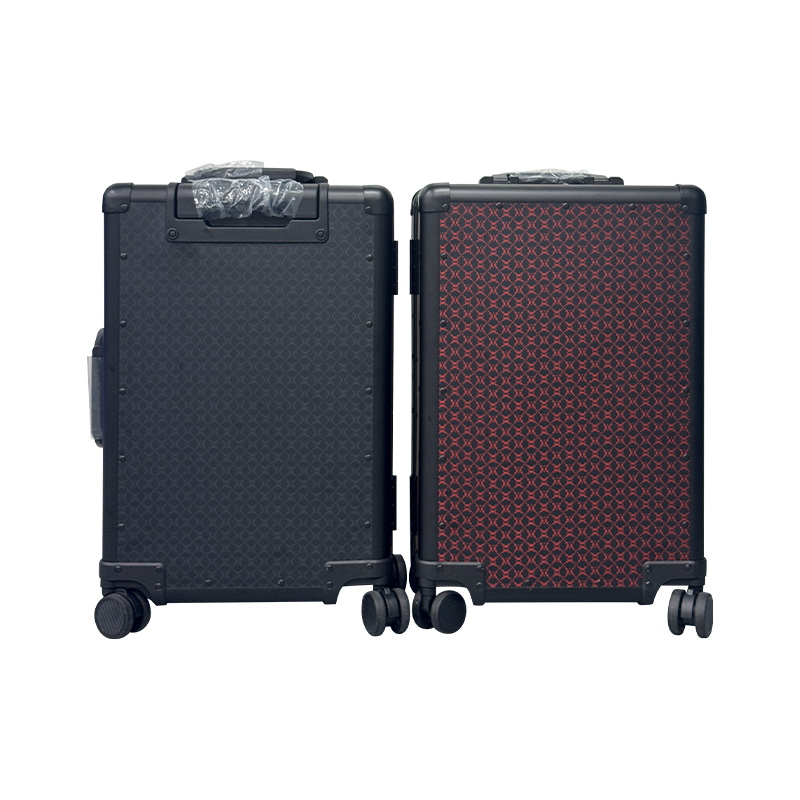

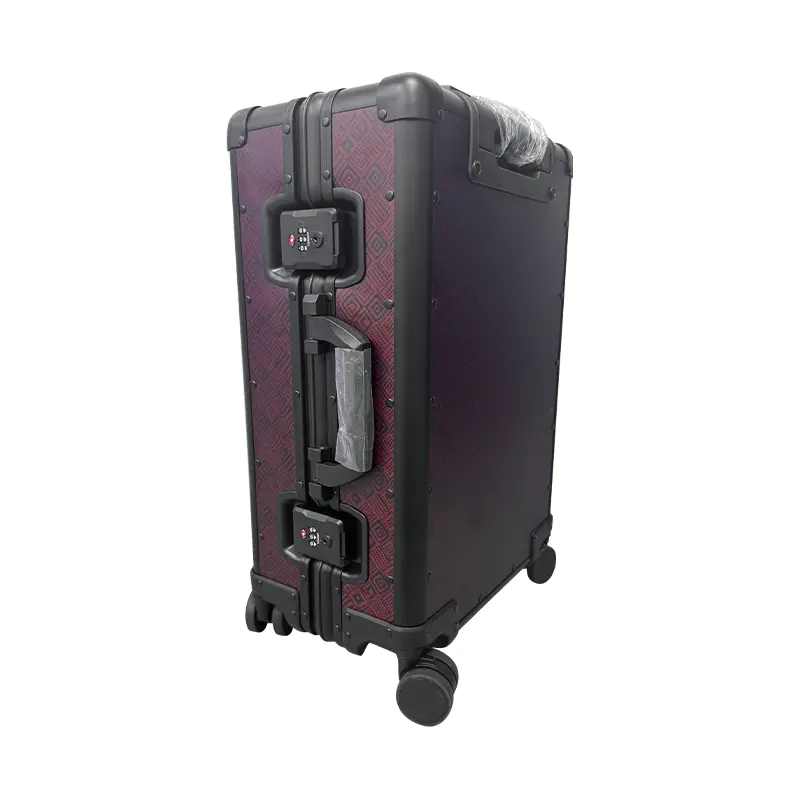

Carbon Fiber Suitcase with Spinner Wheels

Purely hand-customized, carbon fiber suitcases insist on traditional manual craftsmanship. With a total of 200+ rivets per case, each one is hand-set by craftsmen with decades of experience to achieve artisan quality.

·Spring Shock-Absorbing Spinner Wheels
High-rebound TPE thickened tires + shock-absorbing springs for a quieter glide. Steel ball bearings ensure smoothness even when fully loaded, achieving truly snag-free and effortless movement.

·Thickened Stable Aluminum-Magnesium Alloy Handle
High-strength thickened aluminum-magnesium alloy tubes, sturdy and smooth with minimal wobble controlled to approximately 1cm.

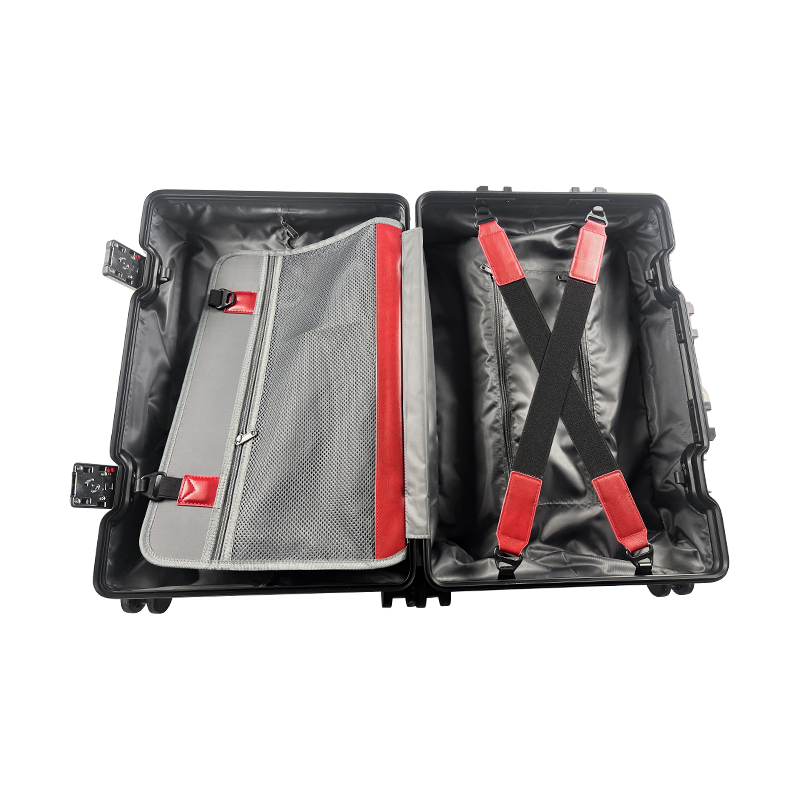

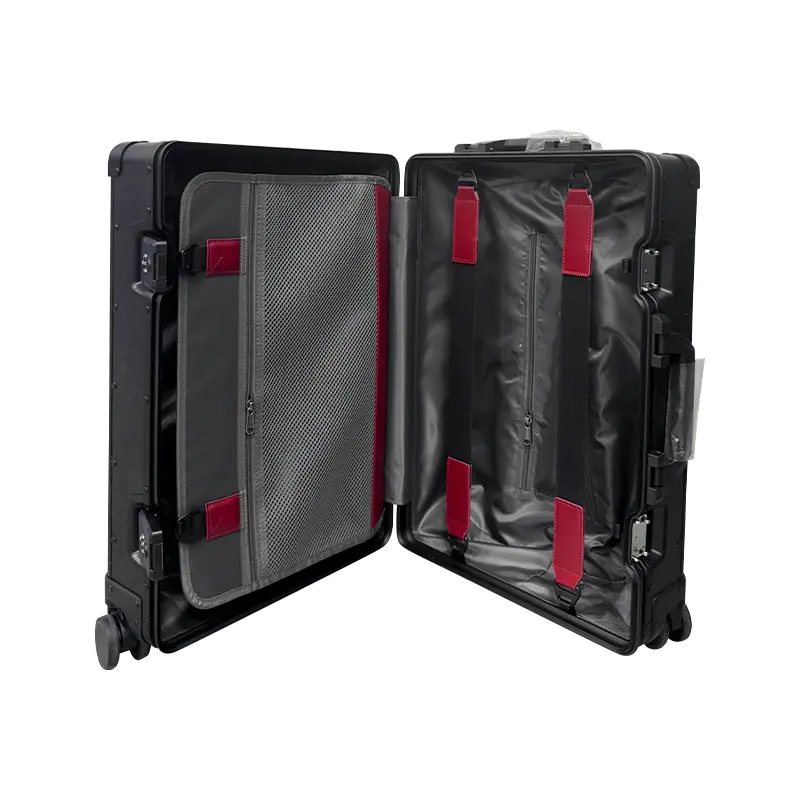

·99% Antibacterial Lining
Partitioned storage and dry/wet separation to keep the interior clean and hygienic.

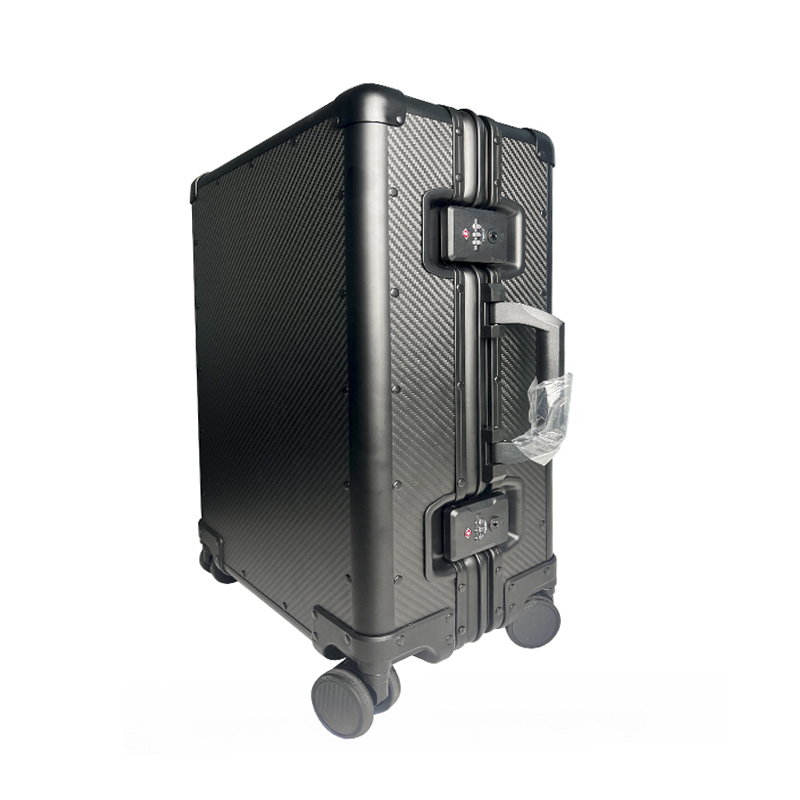

·TSA Customs Lock for Worry-Free Travel
Universally recognized for easy security clearance.

Contact Us
PREV：Carbon Fiber Wind Turbine Blade Protection StripNEXT：No next product
Parameter
SPINNER WHEEL · AEROSPACE MATERIAL
Carbon Fiber Suitcase with Spinner Wheels
Constructed from 3K twill weave carbon fiber prepreg with a polycarbonate inner shell for impact distribution. The suitcase weighs 2.8 kg to 3.6 kg depending on size (carry-on 55cm to large checked 80cm). Four dual-spinner wheels with 60 mm diameter and sealed bearings provide 360-degree rotation. Telescopic handle with aluminum alloy tubes and three-stage locking positions. TSA-approved combination lock integrated into the main closure system.
2.8-3.6 kg Weight range
60 mm Wheel diameter
3-stage Handle lock positions
TSA Approved lock system
01
Weight reduction
Carbon fiber shell provides 35-50 percent mass reduction compared to polycarbonate cases of equivalent wall thickness, reducing passenger load and handling effort.
02
Structural impact resistance
The composite laminate absorbs impact energy through progressive crushing, preventing complete shell fracture during baggage handling drops.
03
Spinner wheel mobility
Dual-wheel design with 60 mm diameter provides lower rolling resistance on carpeted and paved surfaces. Sealed ball bearings reduce friction for extended use.
04
Corrosion and UV resistance
Carbon fiber composite does not oxidize. UV-inhibited clear coat maintains surface gloss and prevents yellowing under repeated exposure to airport tarmac conditions.
Technical specifications
Shell material3K twill carbon fiber + PC inner layer
Wheel type60 mm dual-spinner with sealed bearings
Handle systemAluminum alloy telescopic, 3-stage lock
Lock systemTSA combination lock
Available sizes55 cm, 65 cm, 75 cm, 80 cm (height)

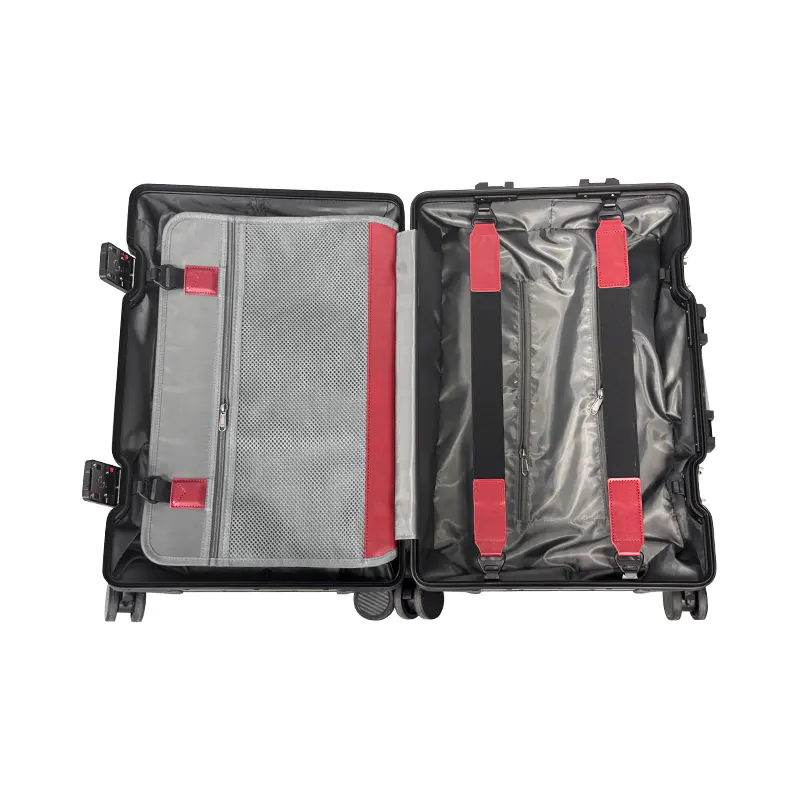

Interior liningNylon with cross-straps and dividers
Product characteristics
Thermal stability -40 to 80°C IPX4 splash resistant Yamato zipper closure Reinforced corner guards Internal compression straps Expandable gusset (selected sizes)
Application scenarios
[B]
Business travel: Suitable for executives requiring lightweight carry-on luggage with a professional appearance that fits overhead compartments on commercial aircraft.
[L]
Leisure and vacation: Used for international and domestic tourism where durability against baggage handling systems and easy maneuverability through airports are required.
[E]
Equipment transport: Applied for carrying photography gear, musical instruments, or technical equipment that require lightweight protective cases with shock absorption.
Common questions
Maximum weight capacity
Static load rating 30 kg per case. Structural integrity maintained up to 25 kg dynamic load during normal baggage handling.
Wheel replacement procedure
Wheels secured by M4 screws accessible from the inner shell. Replacement kits available with screwdriver included. Bearing replacement recommended every 500 km of rolling distance.
Repair for shell cracks
Carbon fiber shell not field-repairable. Structural damage requires factory inspection and replacement. Surface scratches can be polished with automotive compound.
Storage and handling notes
[T] Temperature range for storage: -10°C to 50°C. Avoid leaving in direct sunlight for extended periods to preserve UV coating integrity.
[C] Cleaning: Use mild soap solution and soft cloth. Avoid acetone, benzene, or abrasive cleaners that may damage the resin surface.
[H] Handle extension: Extend fully before loading weight to reduce stress on locking mechanism. Retract before stowing in overhead bins.
i All cases include a 5-year limited warranty covering manufacturing defects in shell, wheels, and handle mechanism. Warranty excludes damage from airline mishandling, overloading, or impact exceeding normal use parameters.
