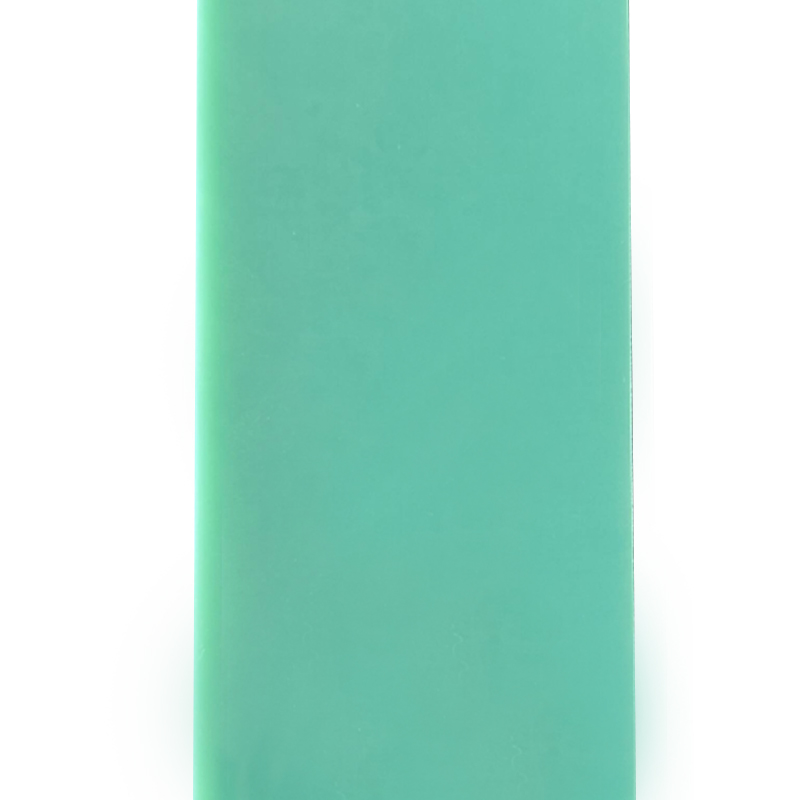

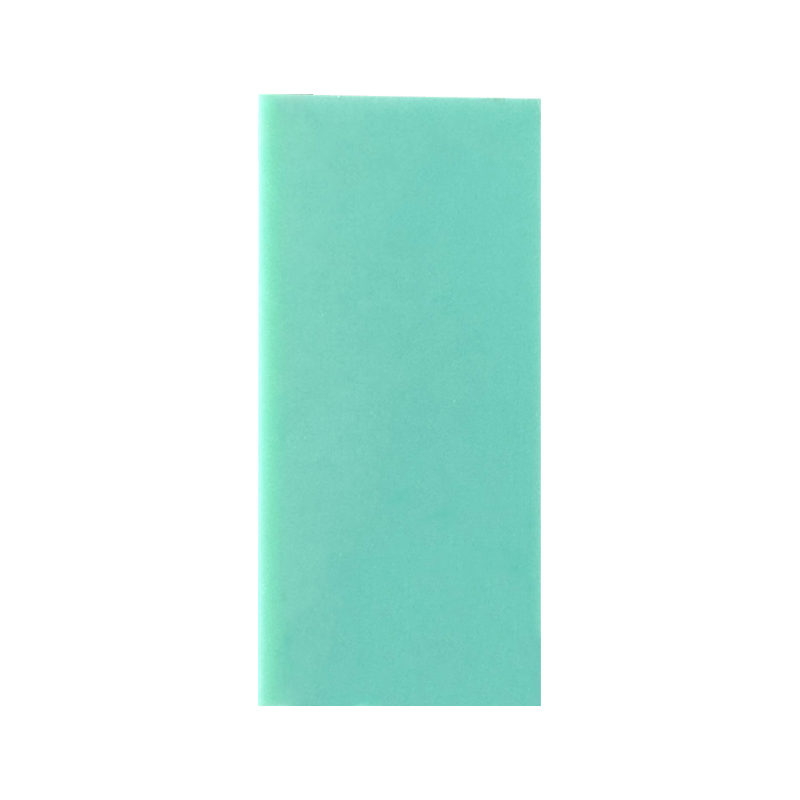

Epoxy Resin Glassfiber Insulation Board
Continuous E-glass fabric layers impregnated with brominated epoxy resin, compression molded at 160°C and 14 MPa. Dielectric strength 20–28 kV/mm (ASTM D149), water absorption ≤0.15% after 24 hours immersion. Operating temperature class F (155°C) with UL 94 V-0 flammability rating. Thickness range 0.3 mm to 50 mm, available in natural green, white, yellow, and black for electrical insulation and structural mounting.
Thermal classF (155°C)
UL flammability94 V-0
Dielectric20–28 kV/mm
▸ Technical advantages
  • Arc resistance: 180+ seconds without tracking (ASTM D495), specified for high-voltage switchgear and contactors.
  • Low dissipation factor: Tan δ 0.015–0.02 at 1 MHz, maintains signal integrity in high-frequency PCB applications.
  • Machining stability: Burr-free drilling with carbide tools; delamination controlled at hole diameters ≥0.8 mm.
  • Moisture resistance: Insulation resistance retention >95% after 96 hours at 95% RH.
▸ Mechanical & electrical data
Flexural strength (lengthwise)350 – 450 MPa
Tensile strength280 – 340 MPa
Compressive strength350 – 420 MPa
Volume resistivity10⁷ – 10⁸ MΩ·cm
CTI (comparative tracking)175 – 200 V (PLC 3)
⎯
Dimensional tolerances
0.5 – 1.6 mm ±0.10 mm
1.6 – 3.0 mm ±0.15 mm
3.0 – 6.0 mm ±0.20 mm
Length/width ≤1000 mm ±2.0 mm
⎯
Thermal & chemical
  • Continuous service: 130°C – 155°C
  • Thermal conductivity: 0.25–0.35 W/(m·K)
  • Chemical resistance: acetone, ethanol, mineral oils
  • Avoid: concentrated sulfuric acid
⎯
Processing parameters
  • Shearing ≤3 mm thickness
  • Drilling feed: 0.05–0.10 mm/rev
  • Spindle speed: 20k–40k RPM
  • Preheating at 80°C for punching >2 mm
◆ Application fields (certified per IEC 60893, NEMA LI-1)
Switchgear barriers Busbar supports PCB test fixtures Transformer spacers Motor slot wedges Arc chute plates Insulating washers
RoHS compliant · REACH SVHC free · Halogen-free grade available (IEC 61249-2-21)
Storage & handling
▸ Keep flat on pallets with edge support. Maximum stack height 800 mm to prevent warpage.
▸ Humidity range: 40% – 70% RH. Prolonged exposure >80% RH may increase water absorption above 0.3%.
▸ Avoid direct contact with copper or bare steel surfaces during long-term storage (oxidation risk).
Common questions & notes
Max operating voltage? 2.5 kV per mm thickness for AC (60% derating for DC).
Post-forming capability? No thermoforming after curing; pre-impregnated sheets only.
Outgassing in vacuum? TML 0.45%, CVCM 0.08% — suitable for vacuum chambers.
Warpage control? Annealing at 120°C for 2 hours reduces residual stress after machining.
ⓘ Certification options: MIL-I-24768, GB/T 1303.1, UL recognized (E number available). Batch traceability included. Mechanical values based on 1.6 mm thickness, longitudinal direction.
