Other Textured Carbon Fiber Woven Fabric

Textured Carbon Fiber Woven Fabric is a high-performance composite material made of carbon fiber tows using a specific weaving process (such as plain, twill or satin), with a three-dimensional texture on the surface to enhance mechanical properties and aesthetics. Its characteristics include high strength, light weight, corrosion resistance and excellent fatigue resistance, and it is suitable for aerospace, automotive modification, sports equipment and high-end industrial fields. Customizable weight (such as 200-600g/m²), thickness and weaving method can meet the needs of different application scenarios.

Contact Us
PREV：No previous productNEXT：Corrosion-Resistant And Drug-Resistant Satin Carbon Fiber Weave Fabric
Parameter
TEXTURED · SPREAD TOW · JACQUARD
Other Textured Carbon Fiber Woven Fabric
Textured carbon fiber fabric
Textured carbon fiber woven fabric encompasses spread-tow, jacquard, and specialty weave constructions beyond standard plain, twill, and satin geometries. Spread-tow fabric features flattened tows with reduced crimp, providing improved mechanical properties and surface smoothness. Areal weight ranges from 80 gsm to 400 gsm depending on tow size (1K-24K) and weave complexity. The textured surface provides enhanced interlayer bonding and aesthetic depth. Tensile strength of 3,200-4,800 MPa with modulus of 220-240 GPa. Available in custom weave patterns including herringbone, basket weave, and leno constructions.
80-400 gsmAreal weight
1K-24KTow size range
3,200-4,800 MPaTensile strength
Core advantages
Spread-tow technology
Flattened fiber tows reduce crimp angle by 30-50 percent, improving in-plane mechanical properties and reducing resin-rich areas between tows for better consolidation.
Textured surface profile
Specialized weave patterns create micro-textures that increase interlayer shear strength by 15-25 percent and improve adhesion to subsequent laminate layers.
Weave pattern diversity
Available in herringbone, basket weave, leno, and custom jacquard patterns offering specific aesthetic and functional properties for diverse applications.
Reduced crimp angle
Spread-tow construction achieves a fiber straightness ratio of 85-95 percent, delivering enhanced stiffness and strength translation from fiber to composite.
Technical specifications
ConstructionSpread-tow / Jacquard / Custom
Tow size range1K to 24K
Areal weight80-400 gsm
Tensile strength3,200-4,800 MPa
Tensile modulus220-240 GPa
Weave stylesHerringbone / Basket / Leno
Standard width100-1,600 mm
Application scenarios
Aerospace interiors: Used in decorative panels and lightweight structural components requiring specific visual textures and reduced weight.
Automotive styling: Applied in interior trim, dashboard overlays, and exterior body accents where visual texture adds aesthetic value.
Marine composites: Utilized in deck fittings, hatch covers, and hull reinforcement where spread-tow provides improved mechanical efficiency.
Consumer electronics: Incorporated in laptop covers, phone cases, and wearable device housings requiring both texture and structural integrity.

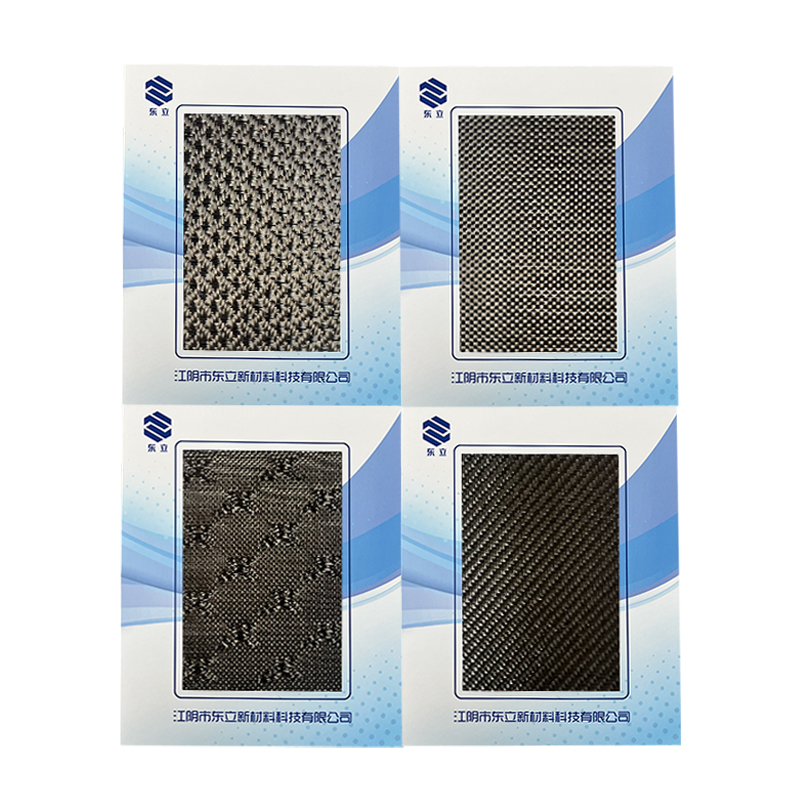

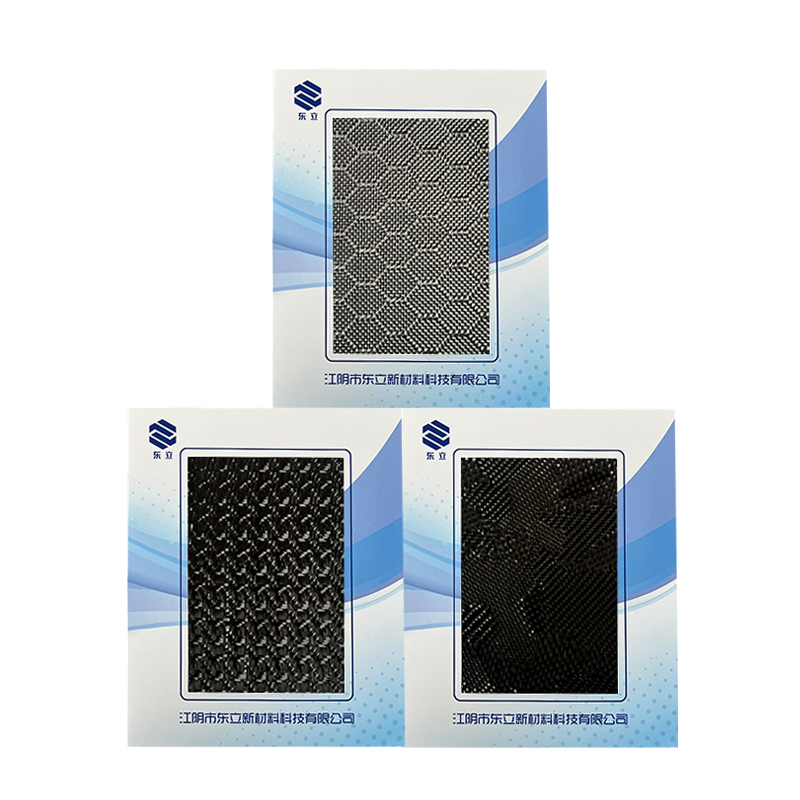

Jacquard
Jacquard weave
Frequently asked questions
Difference between spread-tow and standard tow fabric
Spread-tow fabric uses mechanically flattened tows, reducing yarn thickness by 40-60 percent. This results in lower crimp, higher fiber volume fraction (up to 65 percent), and 15-25 percent improved tensile and flexural properties compared to standard tow fabric of equivalent areal weight.
Custom weave pattern development lead time
Custom jacquard and herringbone patterns typically require 4-6 weeks for loom setup and sample production. Existing patterns are available for immediate order. Minimum order quantity for custom patterns is 100 linear meters.
Surface finish options for textured fabric
Available with standard epoxy sizing, UV-resistant clear coat, or matte finish. Custom surface treatments including anti-fingerprint coating and hydrophobic layers available upon request.
Handling and processing
Cutting: Spread-tow fabric requires sharp rotary cutters. Dull blades may cause fiber displacement. Laser cutting suitable for thermoset sizing.
Layup: Textured surface improves interlayer adhesion. Apply 5-10 percent higher compaction pressure than standard weave fabric.
Resin compatibility: Standard epoxy sizing. Vinyl ester and polyester compatible with specialized sizing.
Storage: Store at 5-25°C, RH below 55 percent. Shelf life 18 months.

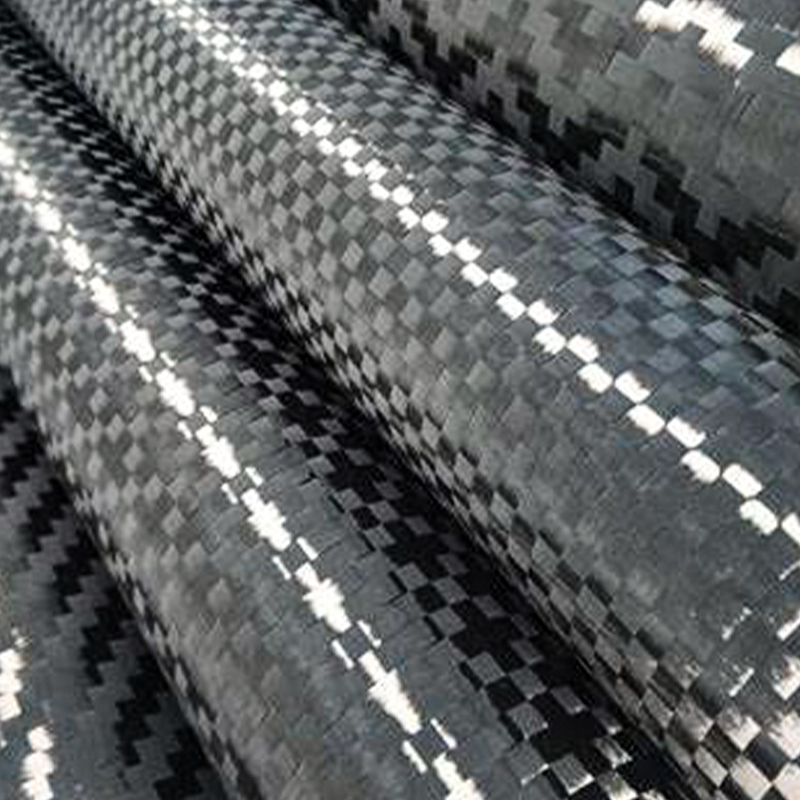

Spread cloth
Spread-tow surface
i All fabric tested for areal weight per ASTM D3776, tensile properties per ASTM D3039. Pattern repeat and texture uniformity verified by visual inspection. Custom widths and weave patterns available.
