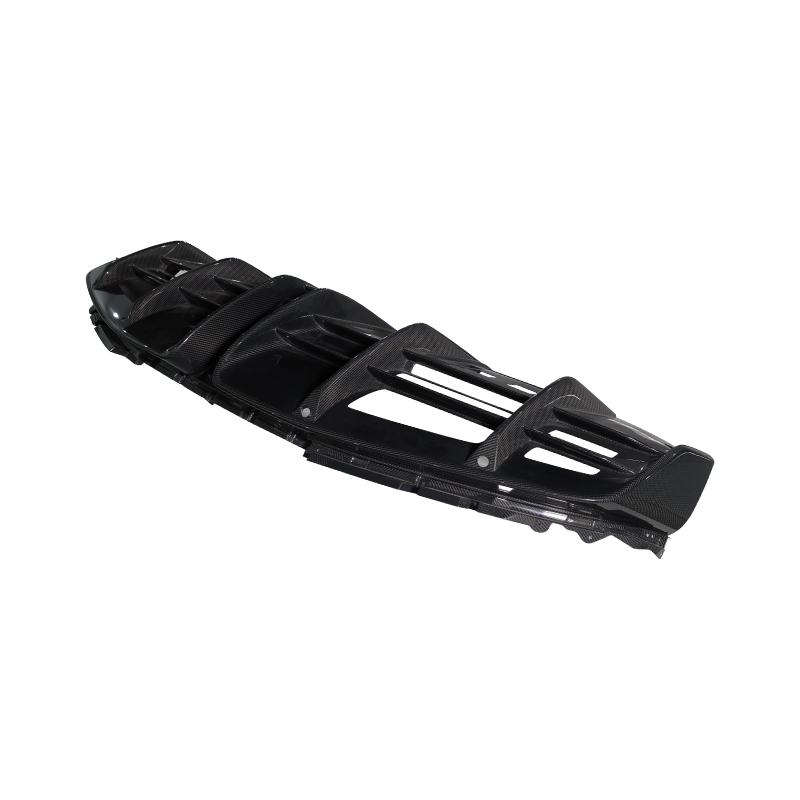

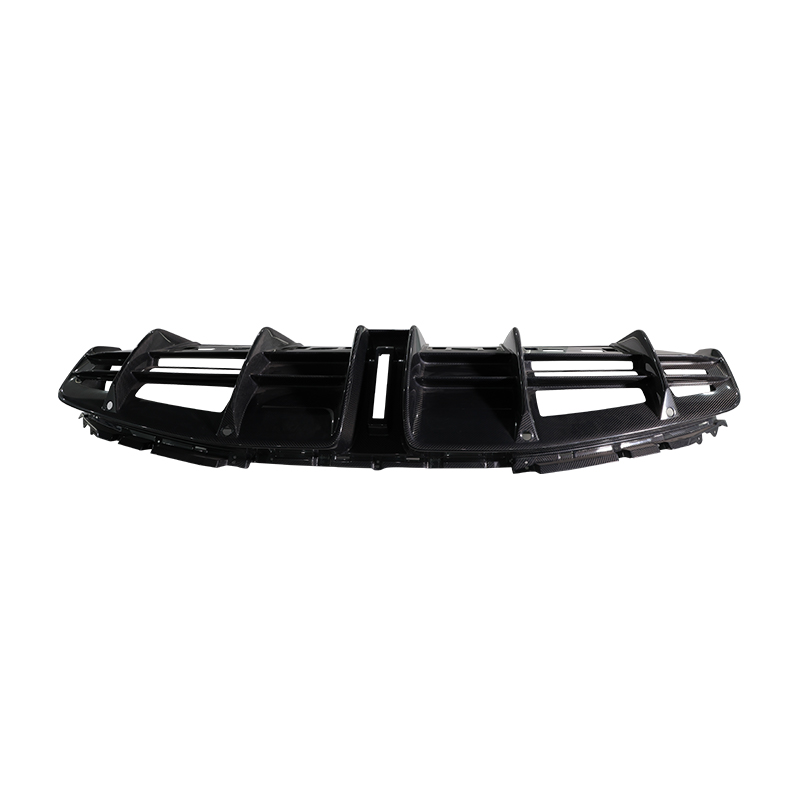

Carbon Fiber Zeekr 001 Upper Spoiler

The Zeekr 001 Carbon Fiber Upper Spoiler is an aerodynamic enhancement component specifically engineered for the Zeekr 001 electric shooting brake. Manufactured using pre-preg carbon fiber and cured under high pressure in an autoclave, this spoiler integrates with the vehicle's original roofline to modify airflow patterns at the rear. The component serves to minimize air turbulence at high velocities while reducing the aerodynamic lift coefficient on the rear axle. Its structural composition provides a high strength-to-weight ratio, ensuring that the additional downforce is achieved without significant gains in vehicle curb weight. The surface is finished with a UV-resistant clear coat to prevent resin yellowing and maintain material integrity under prolonged solar exposure.

Contact Us
PREV：Carbon Fiber Automotive Interior Trim ComponentsNEXT：250g Corrosion-Resistant Motorcycle Skid Plate
Parameter

Core Advantages

  • Aerodynamic Optimization: The profile is contoured to extend the roofline, delaying airflow separation and reducing the low-pressure wake area behind the vehicle.
  • Mass Reduction: Utilizing advanced composite materials results in a component that is significantly lighter than glass-fiber reinforced plastic (FRP) or ABS equivalents.
  • Structural Rigidity: The carbon fiber weave provides high torsional stiffness, preventing deformation or vibration during high-speed operation.
  • Precision Integration: Designed using 3D scanning data of the Zeekr 001 to ensure the attachment points and curvature match the factory bodywork specifications.

Product Characteristics

Technical Parameter Specification Detail
Material Composition 3K Twill Weave Carbon Fiber
Manufacturing Process Dry Carbon Fiber (Autoclave)
Surface Finish Gloss or Matte UV-Inhibited Clear Coat
Installation Method 3M Automotive Adhesive / Bolt-on (Model dependent)
Fitment Zeekr 001 (All variants)

Application Scenarios

  • Performance Tuning: Suitable for owners seeking to enhance the vehicle's stability during track use or high-speed highway driving.
  • Aesthetic Modification: Applied in automotive customization to provide a technical, motorsport-inspired visual profile.
  • Fleet Customization: Integration into specialized performance packages for high-end electric vehicle tuners.

Maintenance and Installation Notes

Installation Guidelines

  • Surface Preparation: Before application, the mounting surface must be cleaned with an isopropyl alcohol solution to remove all wax and ceramic coating residues.
  • Temperature Requirements: For adhesive-based installation, ambient temperatures should be maintained between 20°C and 30°C to ensure optimal chemical bonding of the 3M tape.
  • Curing Period: Avoid water exposure or high-speed driving for 48 hours following installation to allow the adhesive to reach maximum structural bond strength.

Care and Storage

  • Cleaning Protocol: Use pH-neutral automotive detergents. Avoid abrasive polishes that may degrade the clear coat surface.
  • Environmental Protection: Periodically apply a high-grade carnauba wax or ceramic sealant to the carbon fiber surface to enhance UV protection and hydrophobic properties.
  • Storage: If the component is not installed immediately, it should be stored horizontally in a climate-controlled environment, away from direct sunlight and heavy loads, to prevent warping.
